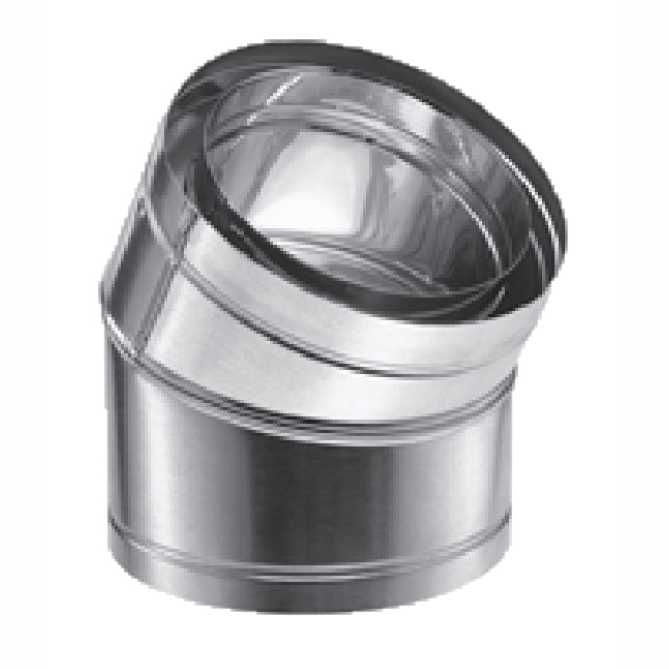

Double Wall Air Cooled Chimney 30 Deg Elbow
Use elbows to offset obstructions such as rafters, ridgepoles, or joists. Two elbows are needed per offset. DuraChimney II may have two pair of elbows, if needed. Offsets greater than 30ï¾° are not allowed. Elbows are not adjustable.
- Specifications
- More Details
- Reviews
Specifications
| Weight | 9.6 |
|---|
More Details

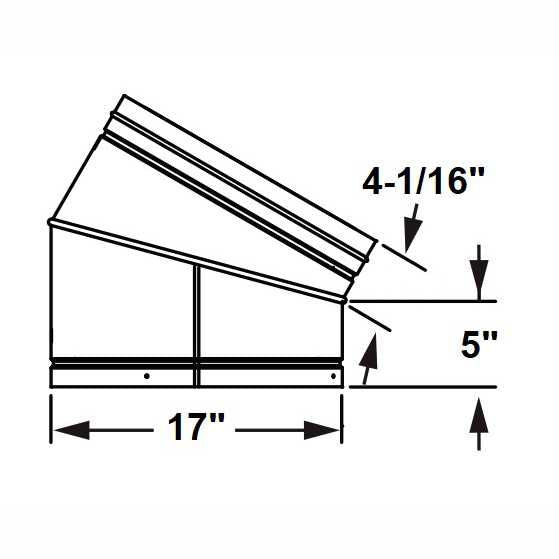

Offset Chart
Applications
DuraChimney II is a double-wall, air-cooled chimney system.
Materials and Construction
.016" 430 stainless steel inner wall and .021" galvanized steel outer wall.
Unitized pipe sections. No field assembly of inners and outers required
Clearances
2" clearance to combustibles.
Listings
UL Listed to UL 103 and ULC S604 standards (MH7399)
