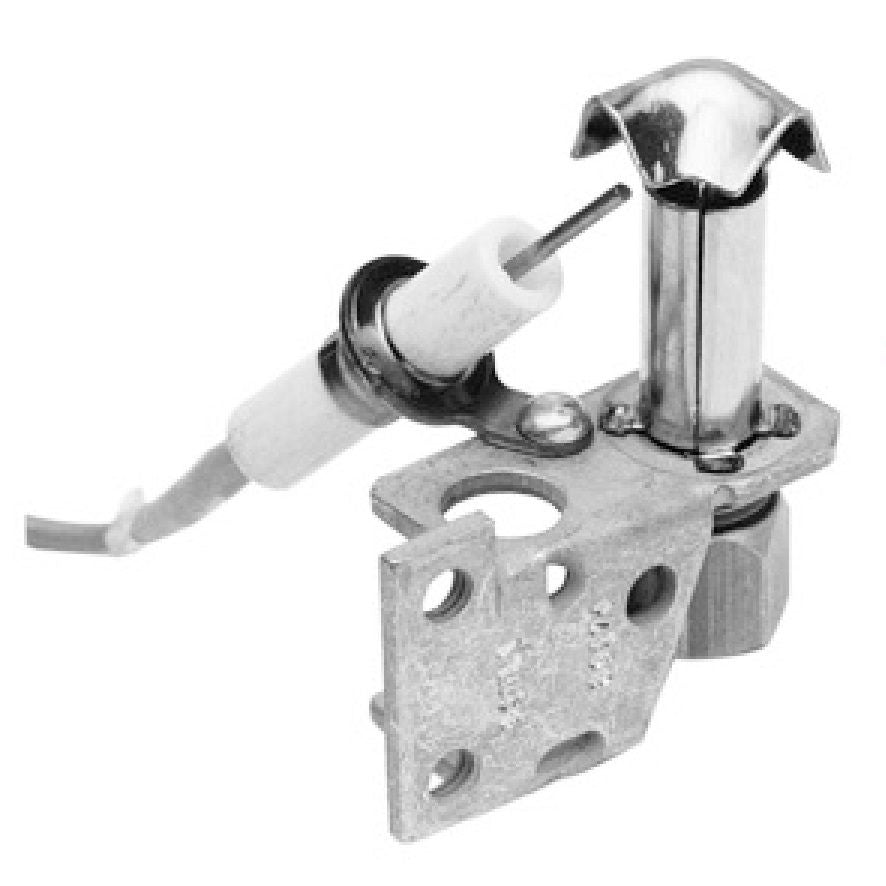

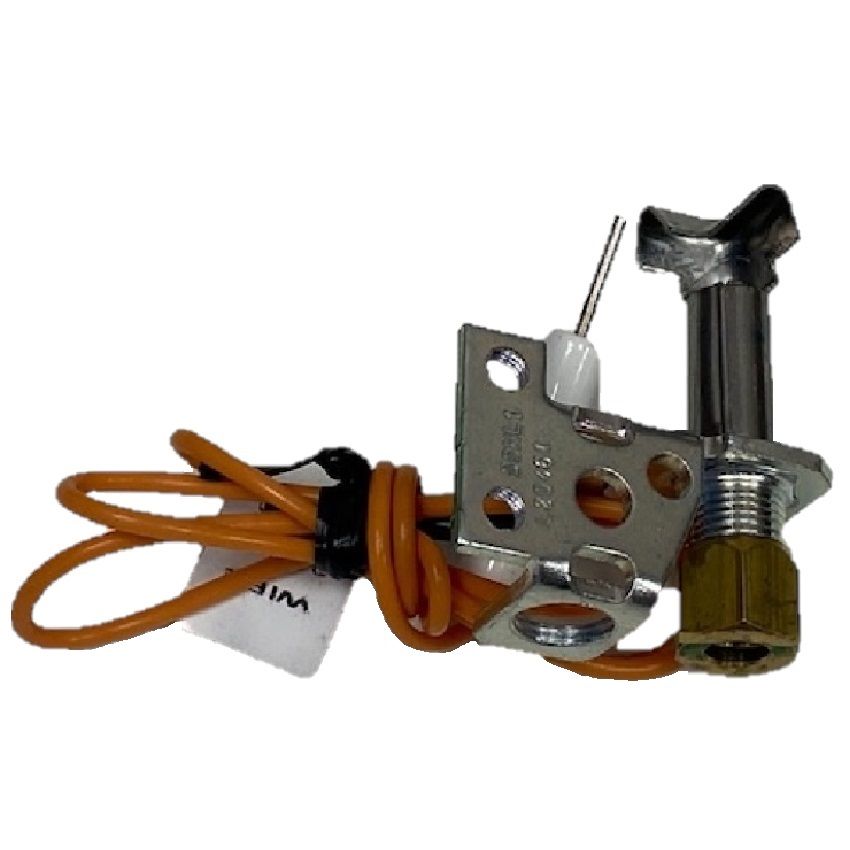

Robert Shaw 90 Degree Left Flame Pattern Pilot with Igniter Electrode

• This pilot assembly can be used to replace existing pilots or for retrofitting standing pilot applications when an exact replacement is desired.



• The 1830-716 has a 90° Left Flame Pattern Type. Has a piezo ignition electrode that is permanently riveted to the pilot frame and the spark gap is fixed at 1/8”.



• Electrode wire is 24" and the spark gap is fixed at 1/8”.



• Igniter wire has round connector to piezo.

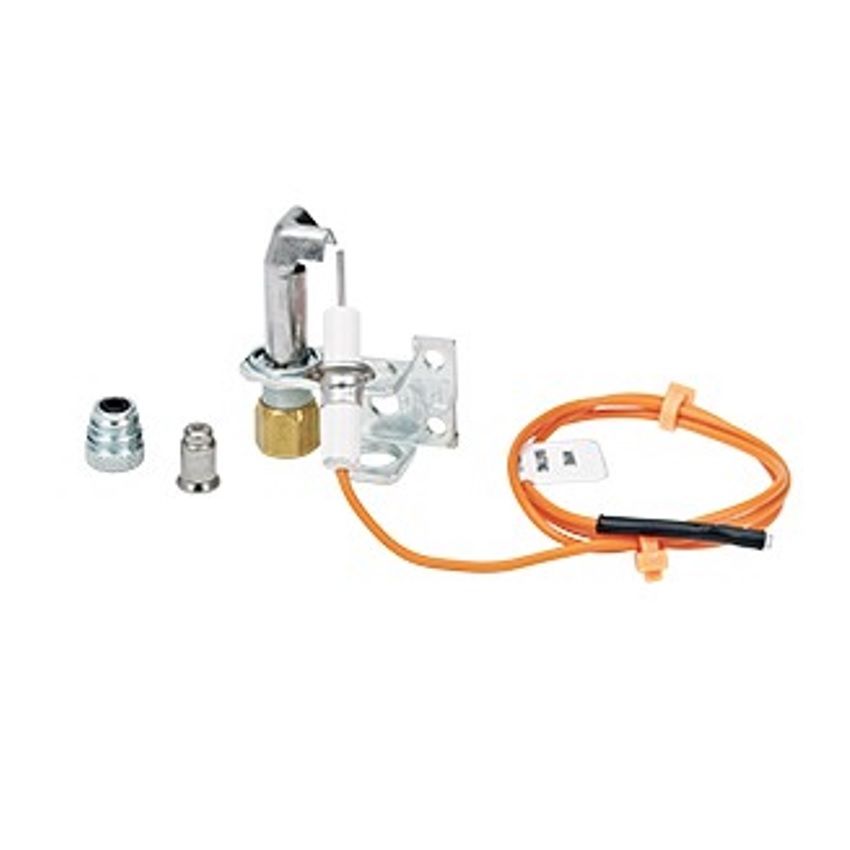

• Comes with a natural gas orifice installed and a separate L.P. gas orifice.




• Connects to 1/4" Pilot tubing.



• Thermocouple or thermopile are options.



• Factory part number 5SHL-1



• RobertShaw part number 76752



• Fits Most Marco & Security Gas Fireplaces with Robert Shaw valve.
